Sidewinder Tube Skimmer, Doosan Style (8 in reach)
Which reach do I order?
If the coolant surface sits within 8 in of where the skimmer mounts, yes: it is the standard ZVA8 cartridge and motor, built without the chute and with the longer cord Doosan tanks need. Deeper sump, or a different machine? Order the ZVA8 Sidewinder and pick the reach. Not sure? Send two photos through the contact page.
| Your situation | Pick | Price |
|---|---|---|
| Doosan machine, coolant surface within 8 in of the mount | ZVA8-08.B1.C10 (this unit: no chute, 10 ft cord, 115 V) | $424 |
| Any other machine, or a reach other than 8 in | ZVA8 Sidewinder, 8 to 101 in reach | from $398 |
Reach is measured from the mounting surface down to the coolant, not the tank depth. Not sure? Send us two photos and we will tell you.
Couldn't load pickup availability
Ships: In stock: ships in 1 business day from Ohio

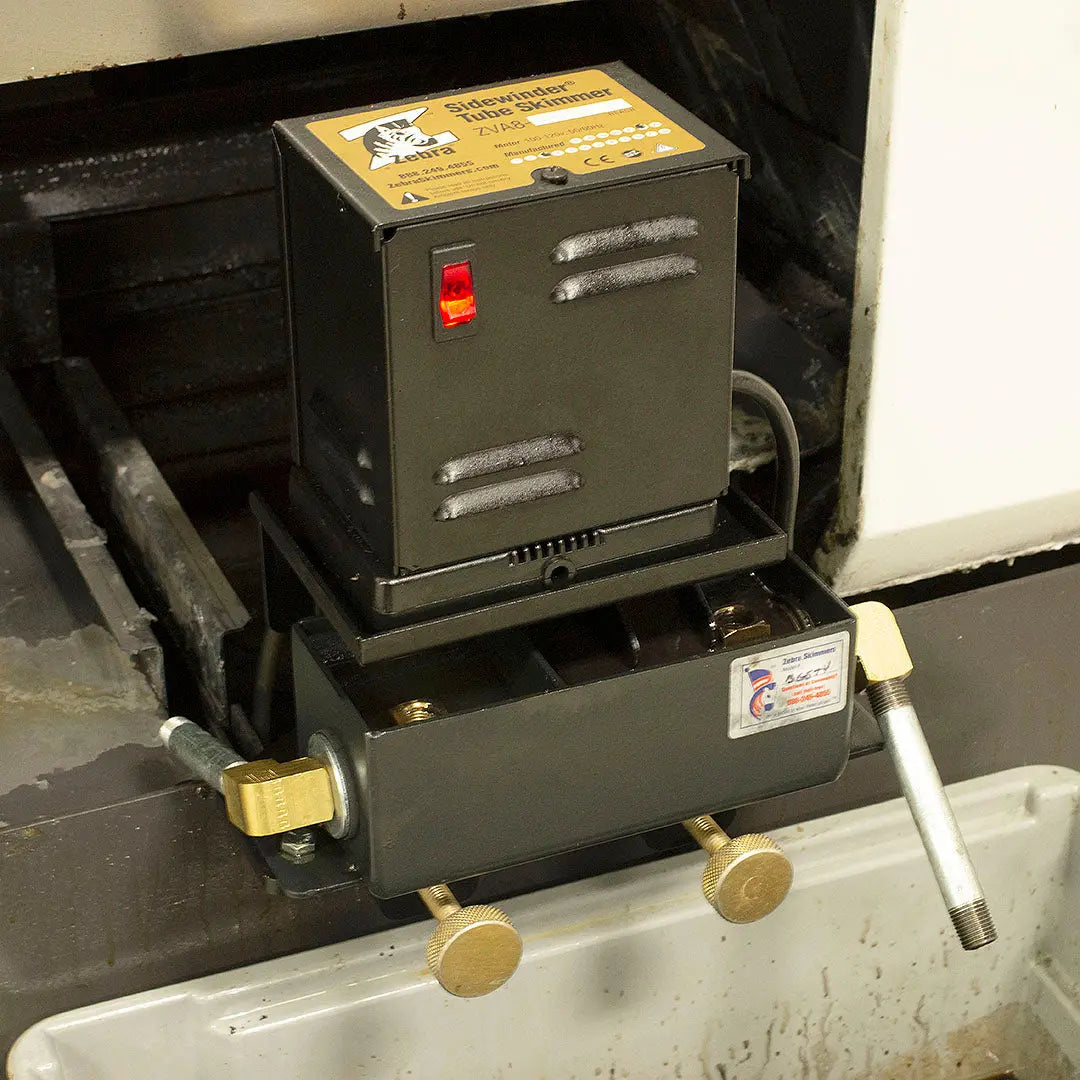

- Built for the Doosan sump: supplied without the discharge chute so it sits flush on the tank, with a 10 ft cord to reach the outlet
- Opening needed: any gap the 1/4 in tube passes through, 1/2 in x 3 in is plenty
- Reach: 8 in from the mounting surface down to the coolant
- Fluid: water-soluble coolant, synthetic or semi-synthetic, up to 86 F (30 C); not for straight oil
Lifetime warranty on the skimmer, made in Ohio. Wear parts such as belts, tubes and wipers are not covered. How it works
Request a quote · Buying more than four? Ask for volume pricing.

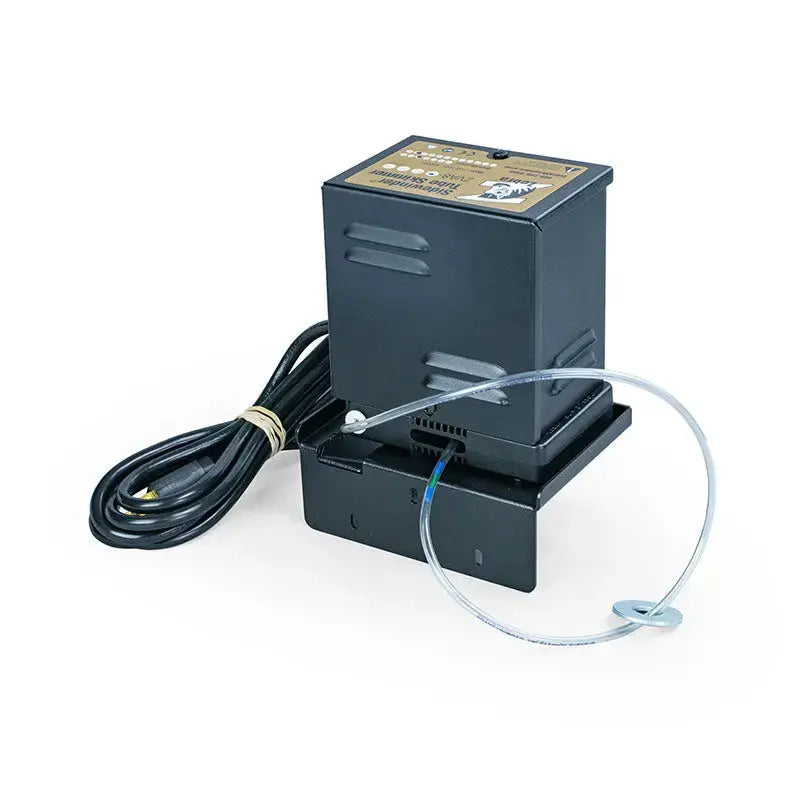

The ZVA8 Sidewinder tube skimmer built for Doosan machines: 8 in reach, supplied without the chute, 10 ft cord, 115 V. Same 28 rpm continuous-duty motor and lifetime warranty as the standard ZVA8 Sidewinder; the tube is a wear part.
Will it fit, which one, and what does it cost?
Everything a shop needs to pick the right unit and order it today.
Will it fit?
- Built for the Doosan sump: supplied without the discharge chute so it sits flush on the tank, with a 10 ft cord to reach the outlet
- Opening needed: any gap the 1/4 in tube passes through, 1/2 in x 3 in is plenty
- Reach: 8 in from the mounting surface down to the coolant
- Fluid: water-soluble coolant, synthetic or semi-synthetic, up to 86 F (30 C); not for straight oil
- Removal rate: about 1 quart of tramp oil per hour, running continuously
- Motor: 28 rpm, 115 V 60 Hz, continuous duty
Which model?
| Your situation | Pick | Price |
|---|---|---|
| Doosan machine, coolant surface within 8 in of the mount | ZVA8-08.B1.C10 (this unit: no chute, 10 ft cord, 115 V) | $424 |
| Any other machine, or a reach other than 8 in | ZVA8 Sidewinder, 8 to 101 in reach | from $398 |
Price, delivery, warranty
- Delivery: In stock: ships in 1 business day from Ohio
- Made in: Cleveland, Ohio, USA
- Buying more than four? Ask for volume pricing.
Manuals, parts and drawings
📄 Tube Oil Skimmer Manual📄 Tube Replacement Instructions🔧 Replacement parts for this unitQuestions shops ask before they order
Is this the right one for my Doosan?
If the coolant surface sits within 8 in of where the skimmer mounts, yes: it is the standard ZVA8 cartridge and motor, built without the chute and with the longer cord Doosan tanks need. Deeper sump, or a different machine? Order the ZVA8 Sidewinder and pick the reach. Not sure? Send two photos through the contact page.
What is different from the standard Sidewinder?
No discharge chute and a 10 ft cord instead of 6 ft. Everything else, including the tube, cartridge and lifetime warranty, is the same.
How long does the tube last?
Tubes are a wear part; life depends on oil load and runs from months to years. Replacement tubes are stocked and ship fast.
